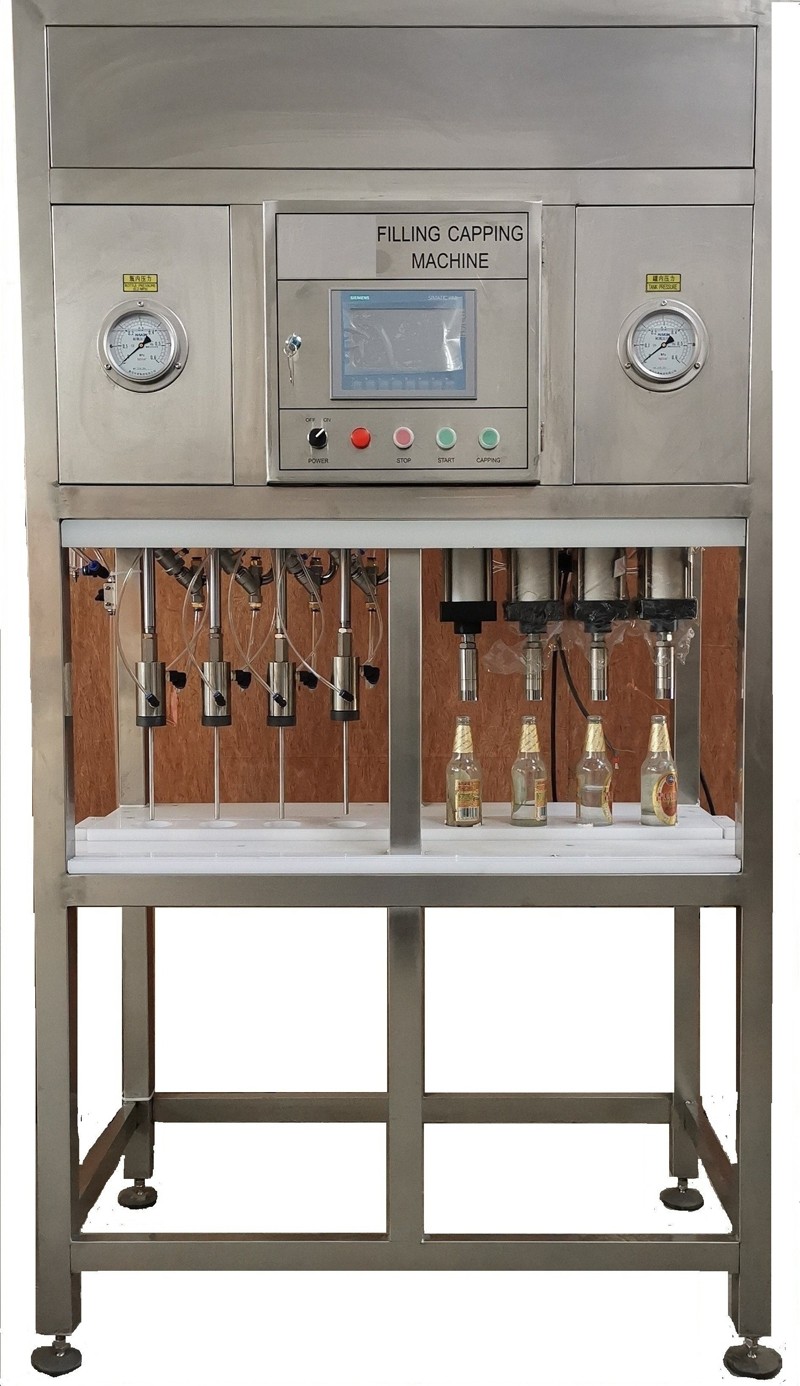

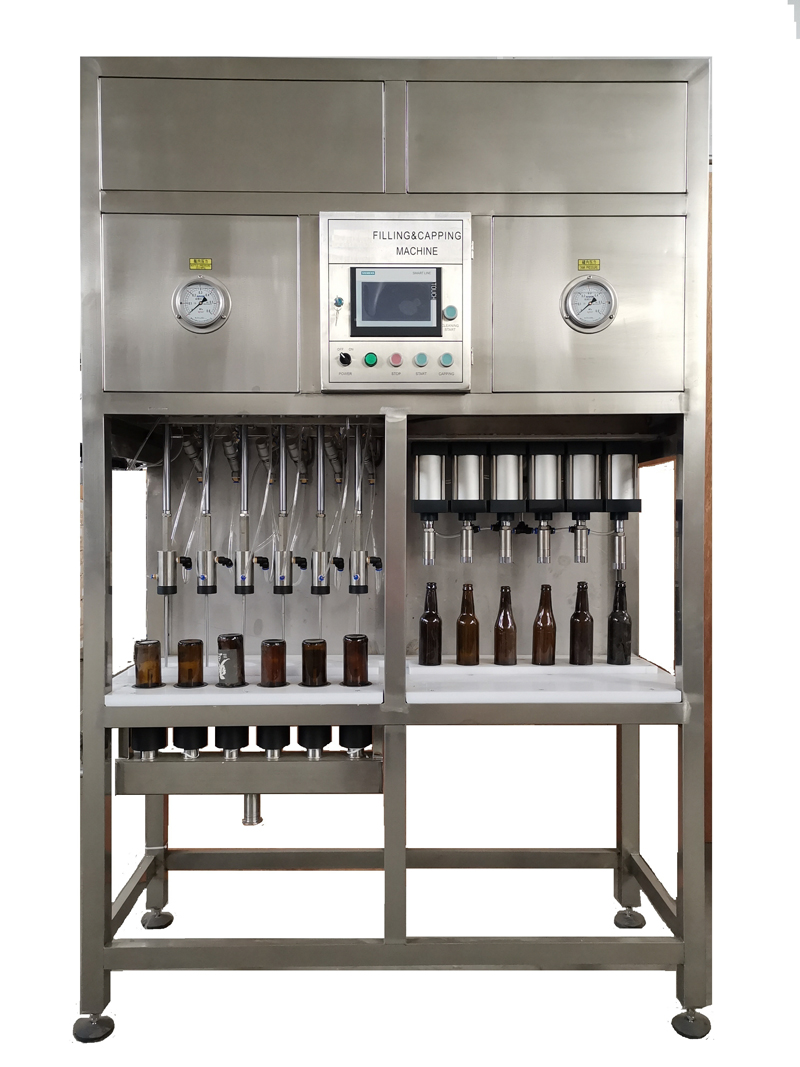

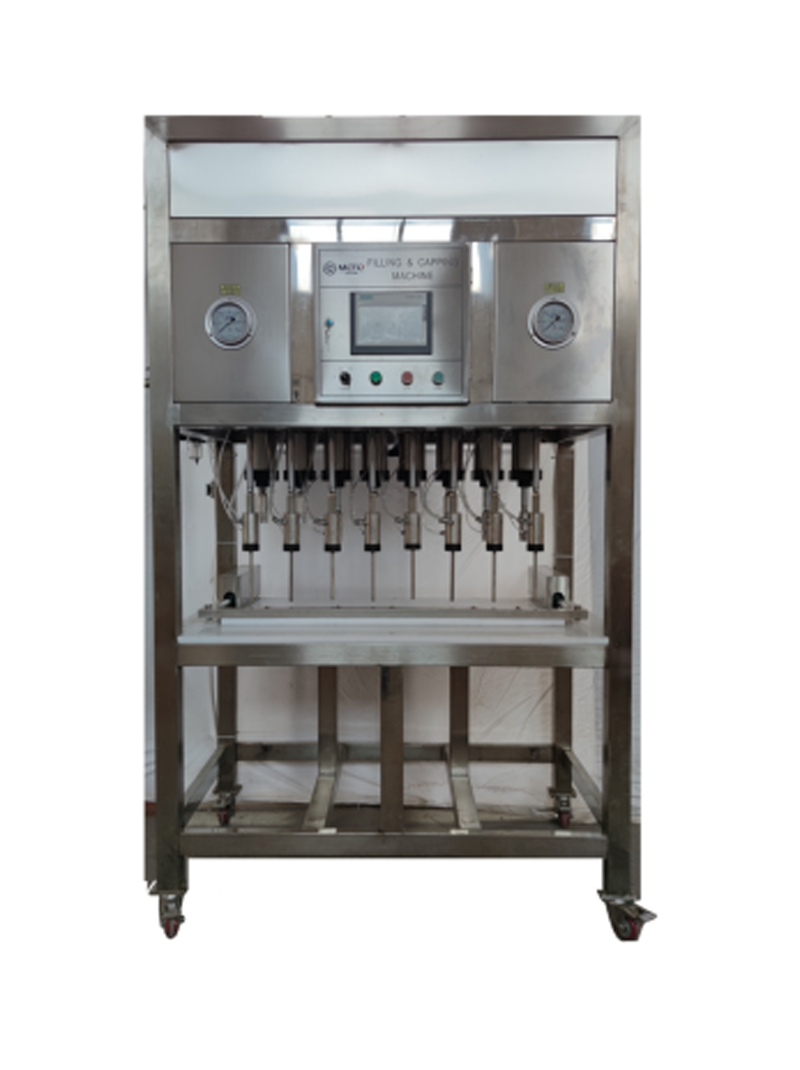

Bottle capping and filling machine
Filling capacity: 100-800BPH.
We can provide you beer filling machine from 100-800bottles per hour suitable foe beer pub and micro brewerr,
also you can choose manual and semi-automatic system.

Main specifications and dimensions
Machine dimensions: 1600mm×650mm×2250mm
Cylinder maximum stroke: 200mm
Net weight: 240kg
Filling method: Filling
Production capacity: 400-500bottles / hour
Applicable barrel range: According to customer requirements.
2.Technical parameters
Beer pressure: 0.12～0.15Mpa
Air pressure: ≥0.5Mpa
CO2 pressure: ≥0.2Mpa
Cylinder valve pressure: 0.4～0.5Mpa
CO2 filling pressure valve pressure: 0.1～0.15Mpa

Cleaning water pressure: 0.3～0.4Mpa

1.4-4 bottle capping & filling machine with auto capping machine, 200-400BPH.

2.6-6 bottle capping & filling machine with auto capping machine, 400-500BPH.

3.8-8 bottle capping & filling machine with auto capping machine, 500-600BPH.
