Conical Brewery Fermentation Tank

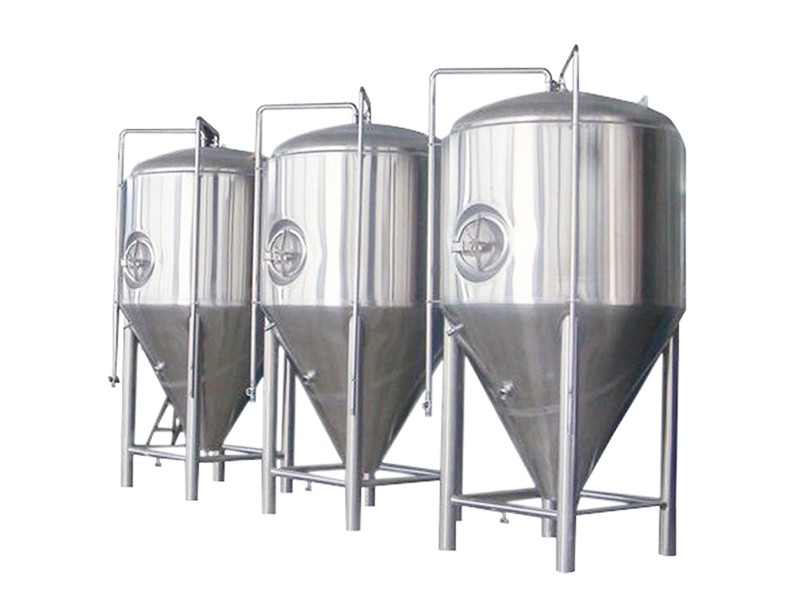

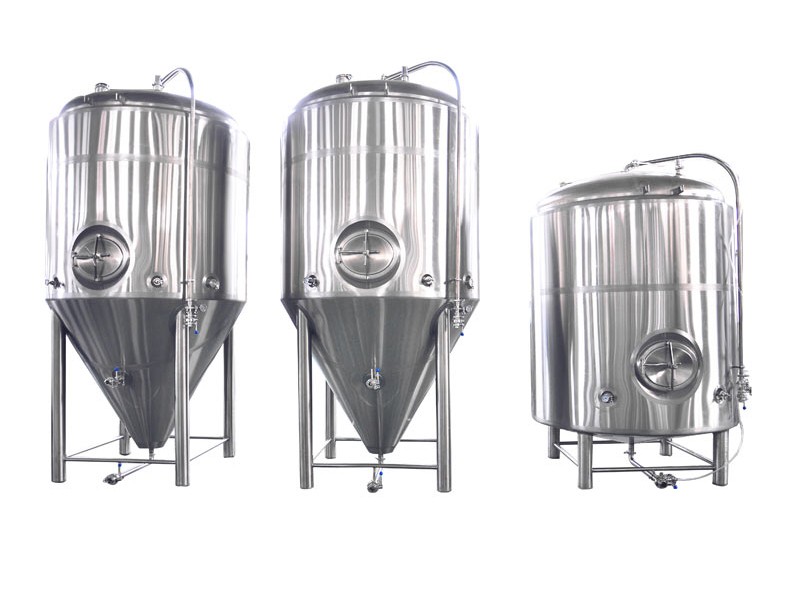

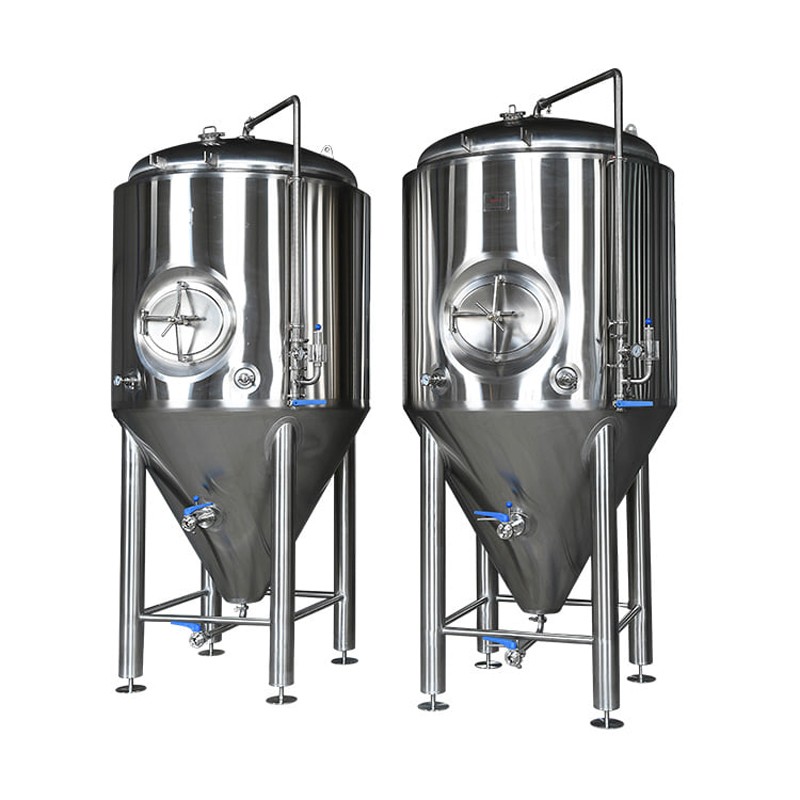

Conical Brewery Fermentation Tank

1.Safety: All tank fabrication procedures follow a strict quality control program.
2.Flexibility: Design and customize equipment to meet individual customer’s site and capacity requirements.
3.Easy to installation and use: Fast installation due to precision pre-fitted piping at factory and quick on-site reassembly time.
4.Durablity:High-quality selection of accessores equipment for improved long-term system performance and low maintenance costs.
5.Warranty:Industry-leading 5 year warranty on all fabricated vessels for long-term hassle-free operation.
6.Perfect pre-sales and after-sales service, provide 3D sketch, CAD layout, installation assitance, assembly and training.

Product Detail

1.Brewery Fermentation system:
Conical fermentation tank. Function: beer fermenting and cooling
Working Capacity: 100L-25,000L/1BBL-25BBL.
Inner Diameter: Requirement.
PU Insulation: 80-100mm
Outside Diameter: Requirement.
Thickness: Inner Shell: 3 mm, Dimple Jacket: 1.5 mm, Cladding: 2 mm

Specifications:
1.All AISI-304 Stainless Steel Construction
2.Jacketed & Insulated
3.Dual Zone Dimple Cooling Jacket
4.Dish Top & 60° Conical Bottom
5. Stainless Steel Legs with Leveling Ports
Fermenter Includes:
1.Top Manway or Side Shadow less Manway
2.Racking Port with Tri-Clover Butterfly Valve
3.Discharge Port with Tri-Clover Butterfly Valve
4.2 Tri-Clover Outlets with Butterfly Valves
5.CIP Arm and Spray Ball
6.Sample Valve
7.Shock proof Pressure Gauge
8.Safety Valve
9.Thermowell
