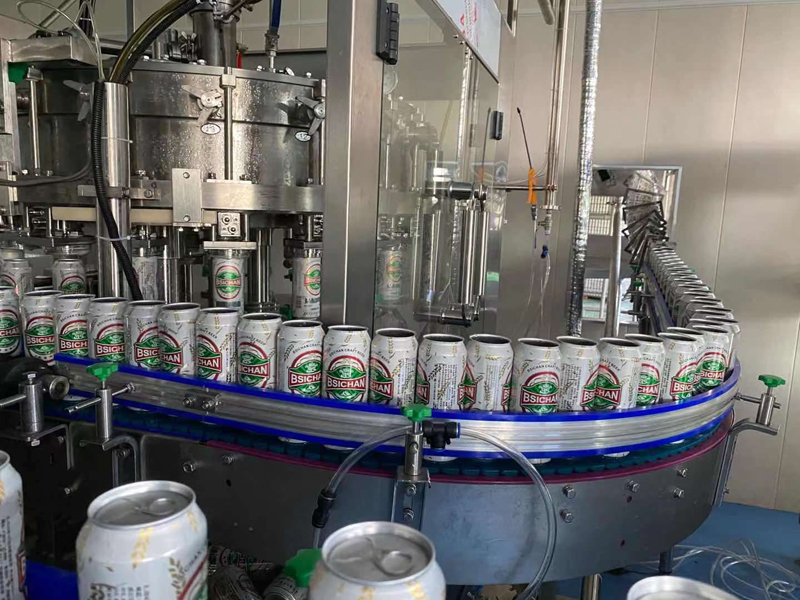

Beer cans line
This linear beer canning line is used for filling beer in cans, rinser, filler and seamer are separated unit.
It can finish all the process such as washing, filling and sealing.

It adopts isobaric filling principle and filling valve adopts high precision mechanical valve.
It has advantages of fast filling speed, high precision in liquid level and ensure that it only starts to filling when there is a can, otherwise it will stop.
Using the device structure of filling valve precover device plus supporting can bottom device,
it can guarantee the maximum stability of cans when they passing in and out. Filling cylinder braces use worm-gear box going
up and down to satisfy cans of different height.
Float switches in the filling cylinder ensure a smooth liquid inlet state.

Whole process:

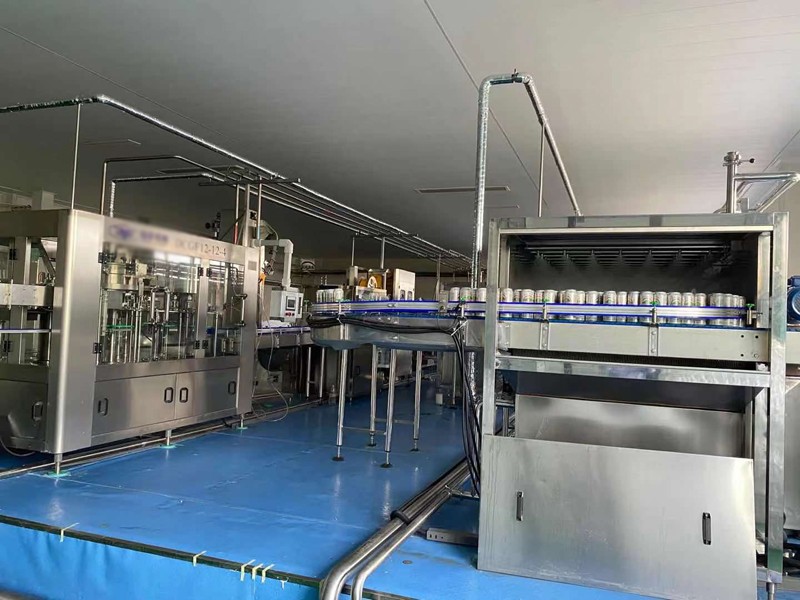

Beer brewery--can washing---beer canning--seaming--pasteurizing tunnel--can dryerdate printer--carton packing machine/shrink wraping machine.

According to your brewery, then we can provide you 1000-8000cans filling line per hour.

Parameter:
12 heads filter unit
Model: BCGF12-4
Production Capacity: 4000CPH
Filling head: 12
Work principle: Balanced pressure
Filling valve: Special beer filling valve
Automatic type: Automatic
Main material: SUS304
Bottle standard: Aluminum cans
Standard Electromagnetic: speed regulation
Power: 3.5kw
Overall Dimensions: 2100*2000*1900 mm
