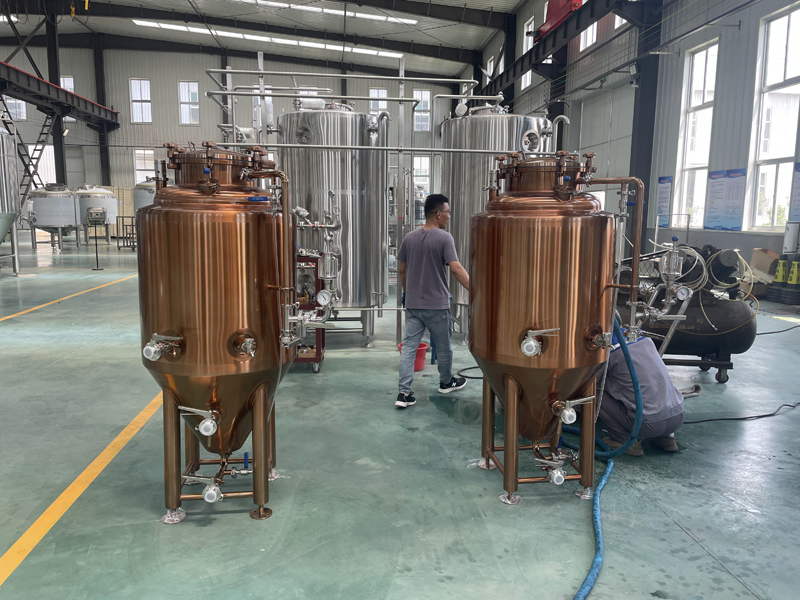

3HL Fermenter 2 pcs
•Material: AISI 304, Titanium -plated.
•Total volume: 4HL, effective volume:3HL, 25% head space, without domed head space
•Tank working pressure: 2bar, testing pressure: 3bar
•Jacket working pressure: 1bar, testing pressure: 2bar
•Inner tank thickness: 3mm, outer cladding: 2mm
•Polyurethane insulation, thickness: 80mm, side and bottom insulated
•Dimple plate cooling jacket
•Cooling stage: cylinder and cone, both jackets connected
•One temp control stage, PT100 Temp sensor
•Exterior: stain removed, and brightened on regular margin
•Interior surface: Polished, and welding joint acid cleaned
•Roughness: 0.4um
•Domed top, 60 degree cone angle
•4 pcs stainless steel leg, with adjustable leg bolt
•Top fittings: CIP arm, spray ball, PVRV, dry hopping port

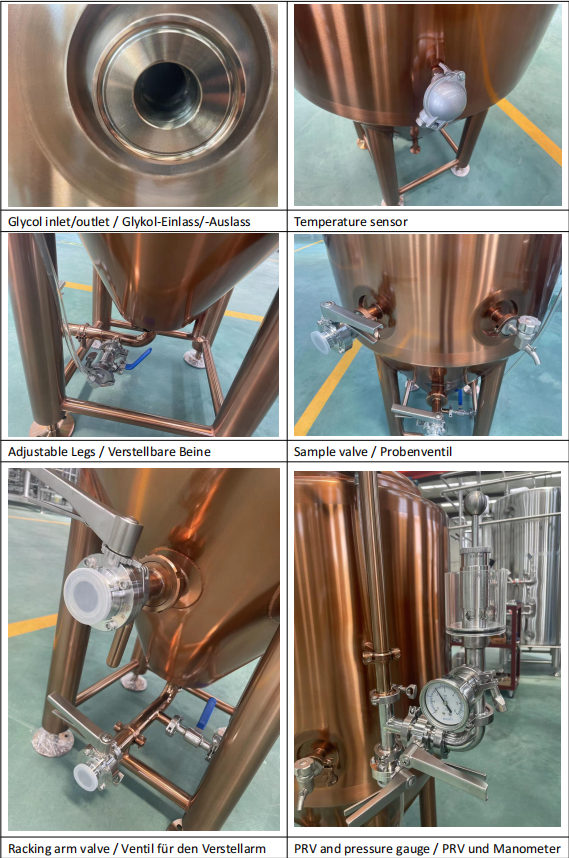

•Side fittings: Glycol inlet/outlet, thermo well, sample port, side manway
•Bottom fittings: Drain outlet, beer outlet
•CIP arm including diaphragm pressure gauge
•Mechanical pressure valve mounted with CIP arm
•Dry hopping port on top
•Racking arm
•Carbonation unit with tanks
Fittings quantity:
•5* butterfly valves (bottom drain,beer outlet, 2 for CIP arm, )
•1* breathe valve on tank top
•1*bunging device installed with CIP arm
•1*CIP arm
•1* pressure indicator
•1* temp sensor
